Scalable Video Switch D-Terminal Input

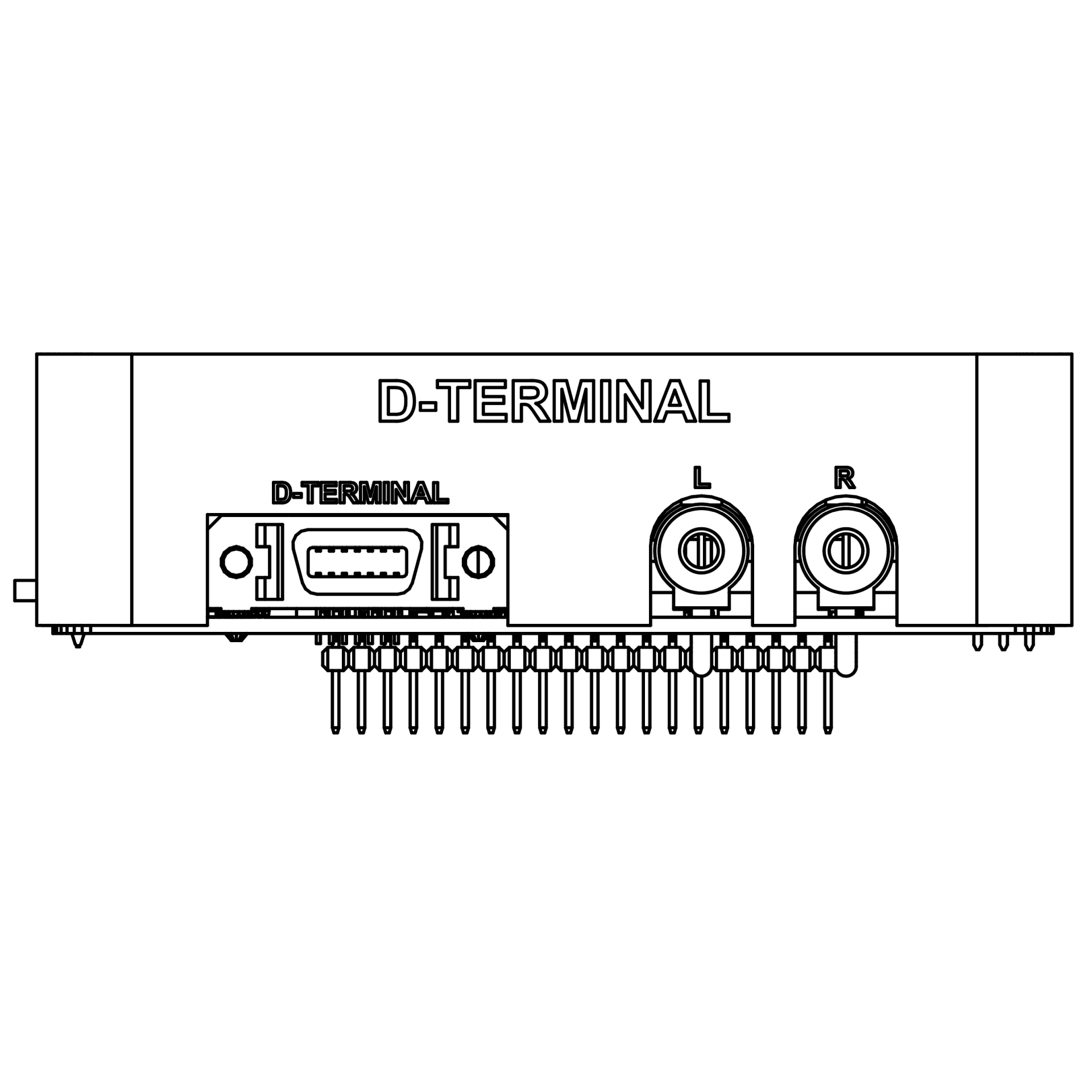

D-Terminal Input Module

This is the D-Terminal Input Module for the SVS. This is the Japanese connector type for component video (YPbPr).

Features:

• Can accept YPbPr (otherwise known as Component Video) and RGsB (otherwise known as Sync On Green)
• Can accept resolutions up to 1080p60
• Can accept Toslink digital audio with the optional Toslink Input Module.

Included Parts:

• 1x D-Terminal Input Module PCB
• 1x D-Terminal Input Module shell

• 4x M3 25mm hexagonal standoffs
