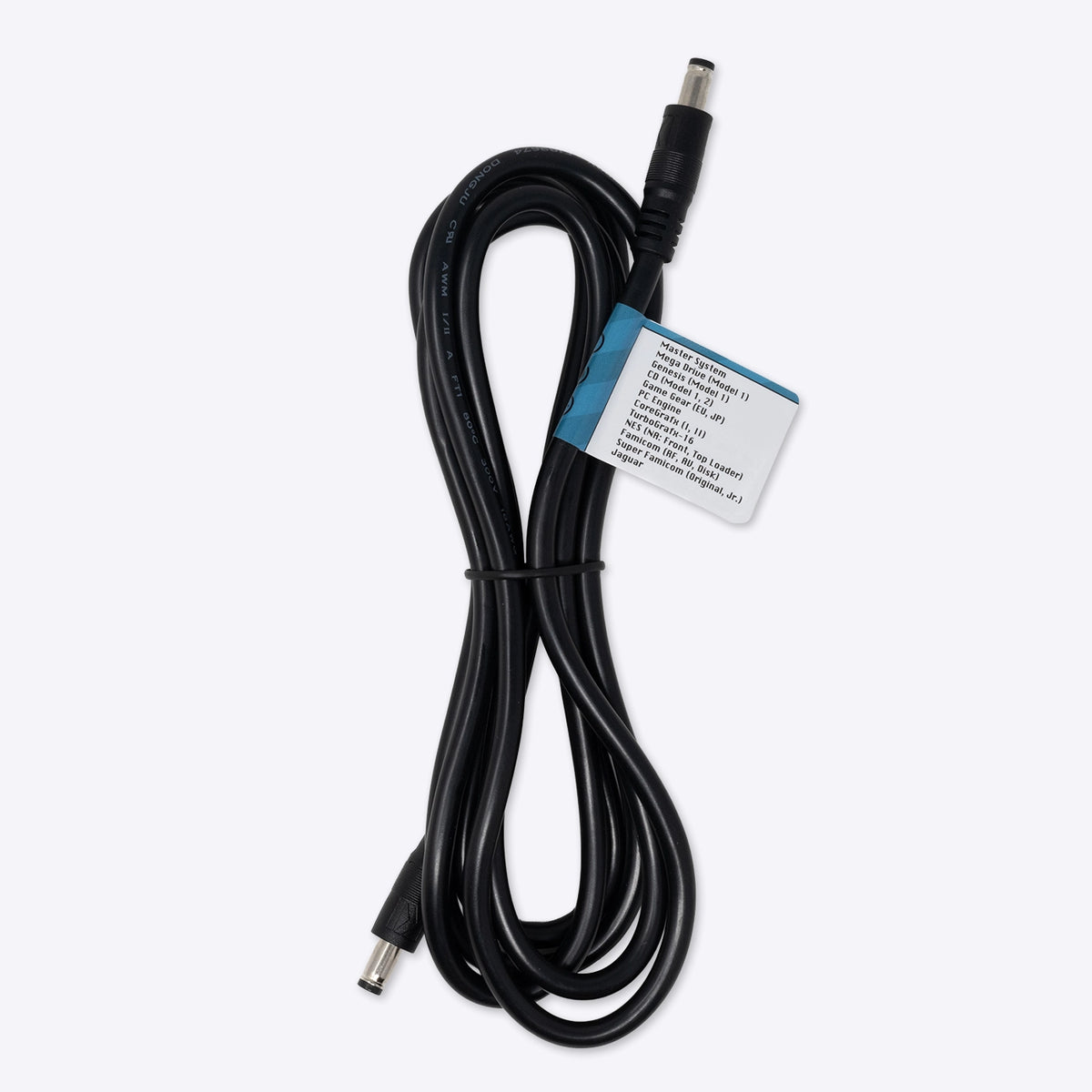

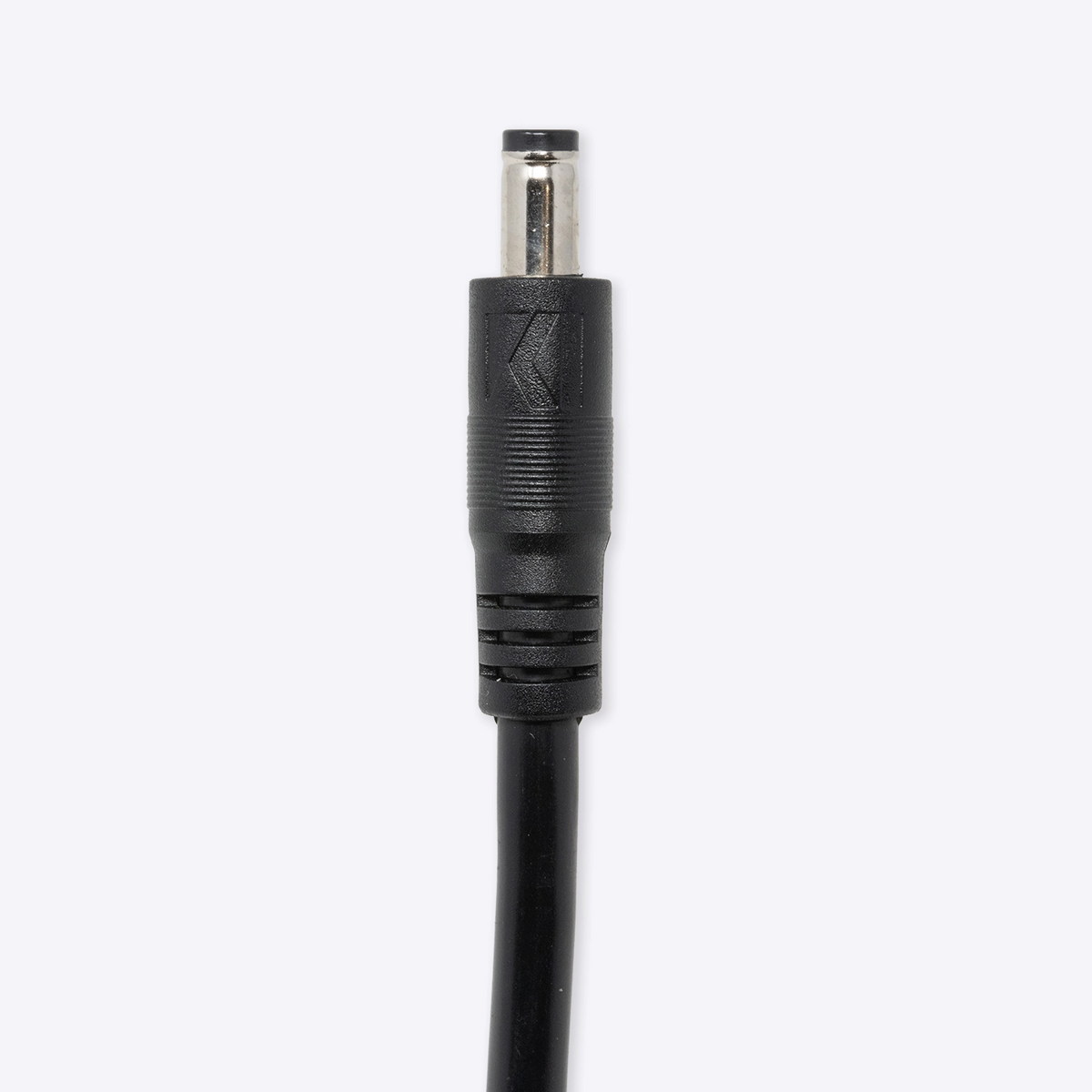

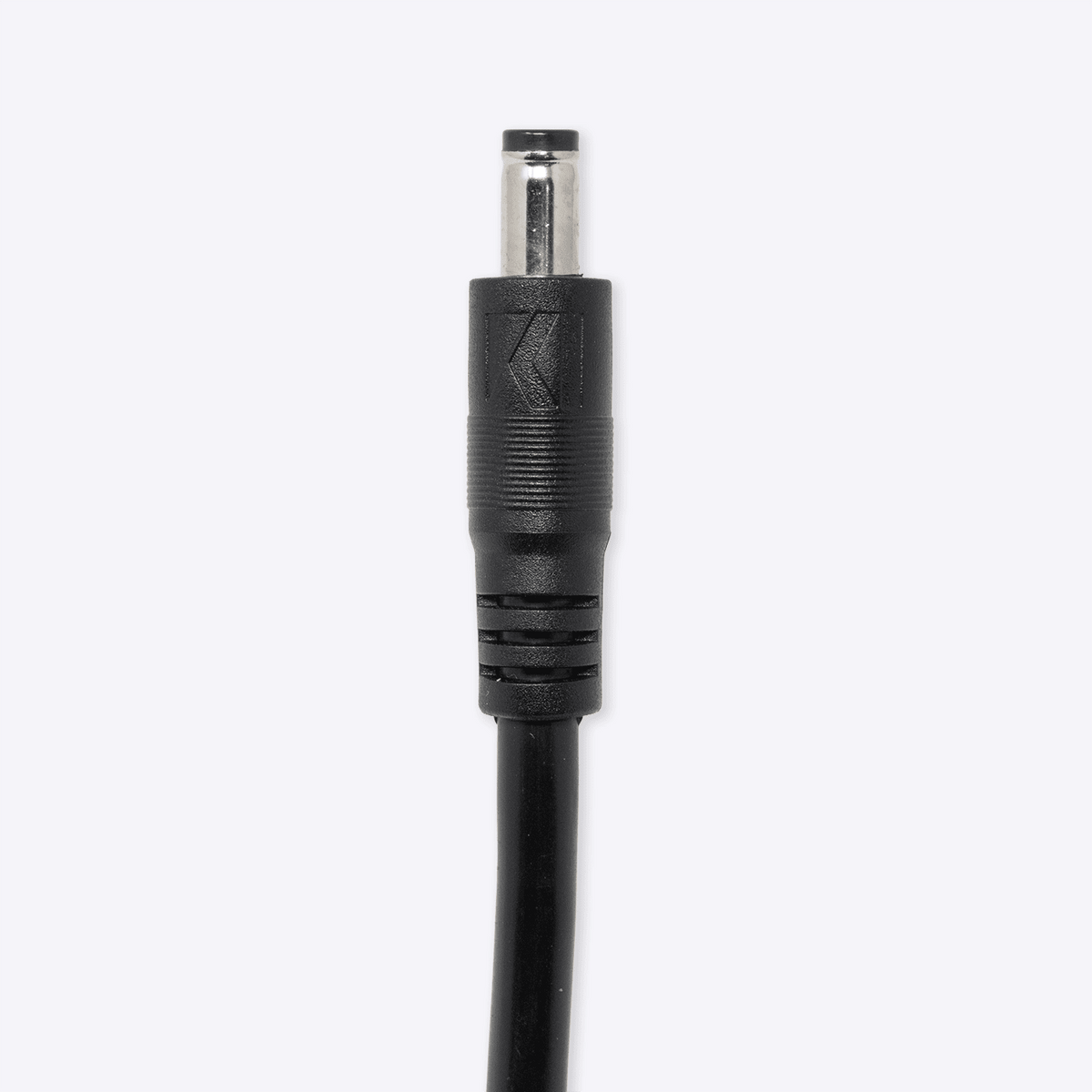

RetroTap DC Power Cable for SMS, Genesis 1, NES, SFC, Famicom, PCE, TG16, Jaguar (5.5 x 2.1 mm)

Replace a pile of aging, bulky wall warts with one clean, centralized power solution. The Kytor Industries RetroTap is a 9V DC power distribution system designed specifically for retro gaming setups, allowing you to connect up to 11 consoles to a single power supply.

Engineered for safe, reliable operation with sensitive vintage hardware, RetroTap delivers low-noise, filtered power with exceptionally low ripple. Every output features its own resettable fuse for overcurrent protection, while the 9V input includes polarity protection for additional peace of mind.

With the appropriate cables, RetroTap supports more than 45 retro console variations, including systems from Nintendo, Sega, Atari, NEC, SNK, and more. Its combination of multiple barrel connector formats and a dedicated 5V USB-C output makes it possible to dramatically simplify the power setup behind a large retro gaming collection.

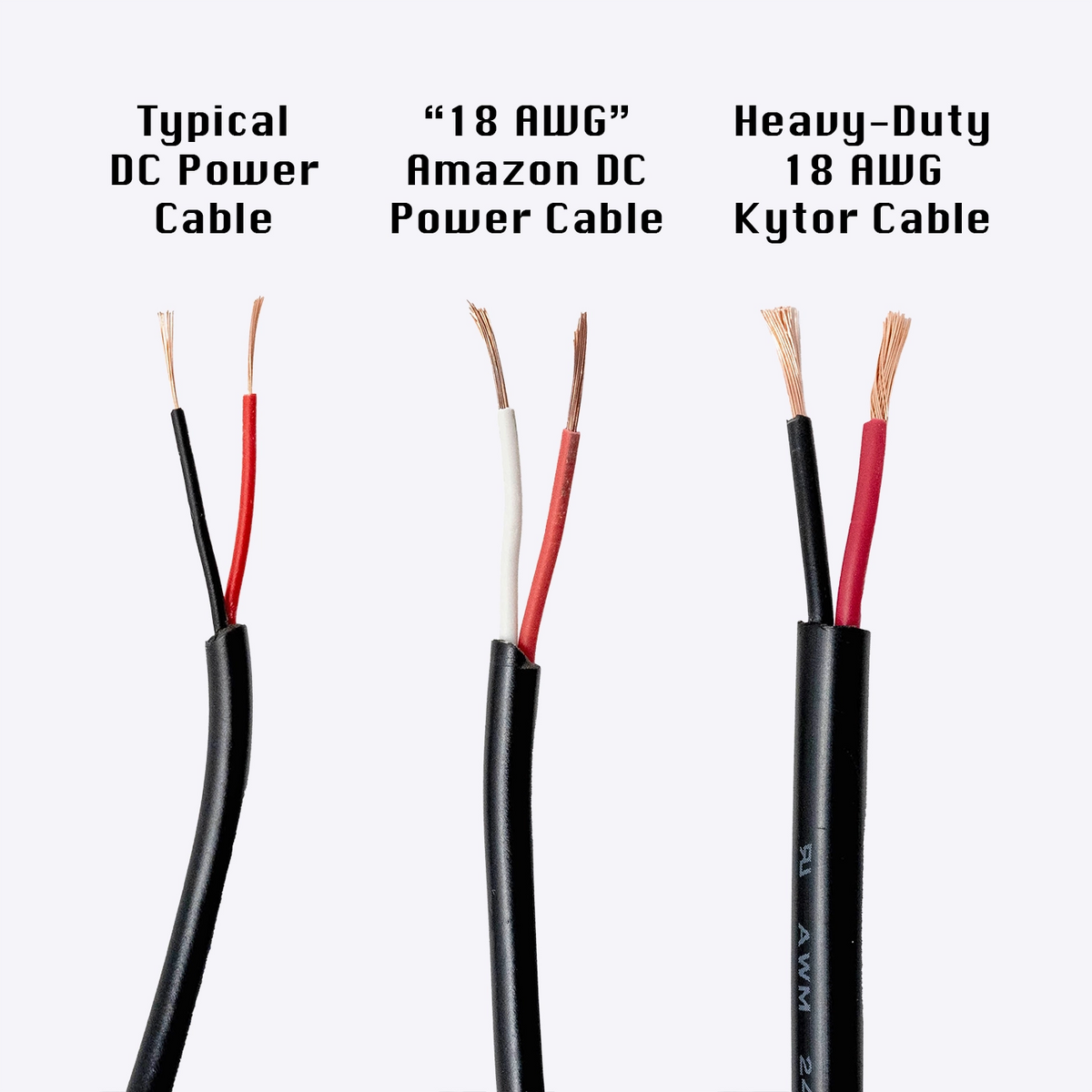

Pair RetroTap with Kytor's optional custom-spec 18 AWG console power cables for a clean installation with durable cabling and clearly identified console compatibility.

Features:

• Connect up to 11 retro consoles to a single power supply
• Compatible with 45+ retro video game console variations with appropriate cables
• Low-noise, filtered power designed for sensitive retro hardware
• Resettable fuse protection on every output
• Polarity-protected 9V center-positive input
• Premium injection-molded enclosure
• Optional custom-spec 18 AWG power cables available separately
• Optional wall-mounting solutions available separately

Outputs:

• (5) 5.5 x 2.1mm center-negative 9V outputs — four 1.25A and one 3A
• (4) 4.8 x 1.7mm center-positive 9V outputs — three 1.25A and one 3A
• (1) 6.5 x 3.0mm center-positive 9V output — 1.25A
• (1) USB-C 5V output — up to 4A (non-PD)

Power Supply Requirements:

RetroTap is compatible with a 9V DC, center-positive, 5.5 x 2.1mm power supply. A 5A to 6A supply is recommended. The Mean Well NGE65U09-P1J 9V/6A power supply is one recommended option.

Compatible Console Families Include:

• NES and Super NES
• Super Famicom
• Virtual Boy
• Sega Master System
• Sega Genesis / Mega Drive
• Sega 32X and CDX
• TurboGrafx-16 and CoreGrafx
• TurboDuo, Duo-R and Duo-RX
• Atari 2600 and Jaguar
• Compatible Neo Geo AES models
• MiSTer FPGA
• Additional compatible systems with the appropriate power cable

Accessories Sold Separately:

• Console-specific DC power cables
• Mean Well 9V power supply
• PS2 Slim PSU-to-RetroTap adapter
• RetroTap wall mount
• PS2 Slim PSU wall mount

Important: While up to 11 consoles can remain connected to RetroTap, Kytor recommends powering no more than four consoles simultaneously.

Compatibility Note: RetroTap is intended primarily for 9V DC-powered retro consoles and is not compatible with systems such as the Dreamcast, PlayStation 2, or Sega Saturn that connect directly to AC power and use internal power supplies. It is also not intended to power devices such as RetroTINK scalers, gscart switches, Koryuu, OSSC, or similar video processing equipment. RetroTap is not compatible with the TurboGrafx-CD Docking Base.
