dbGrafx Booster TTP

Regular price
$65.00
Sale price
$65.00
Shipping calculated at checkout.

Pre-Order Note:
Coupon codes may be disabled for some pre-order and exclusive items.
Pre-order ship dates are estimates and subject to change.
Estimated to ship October 18th

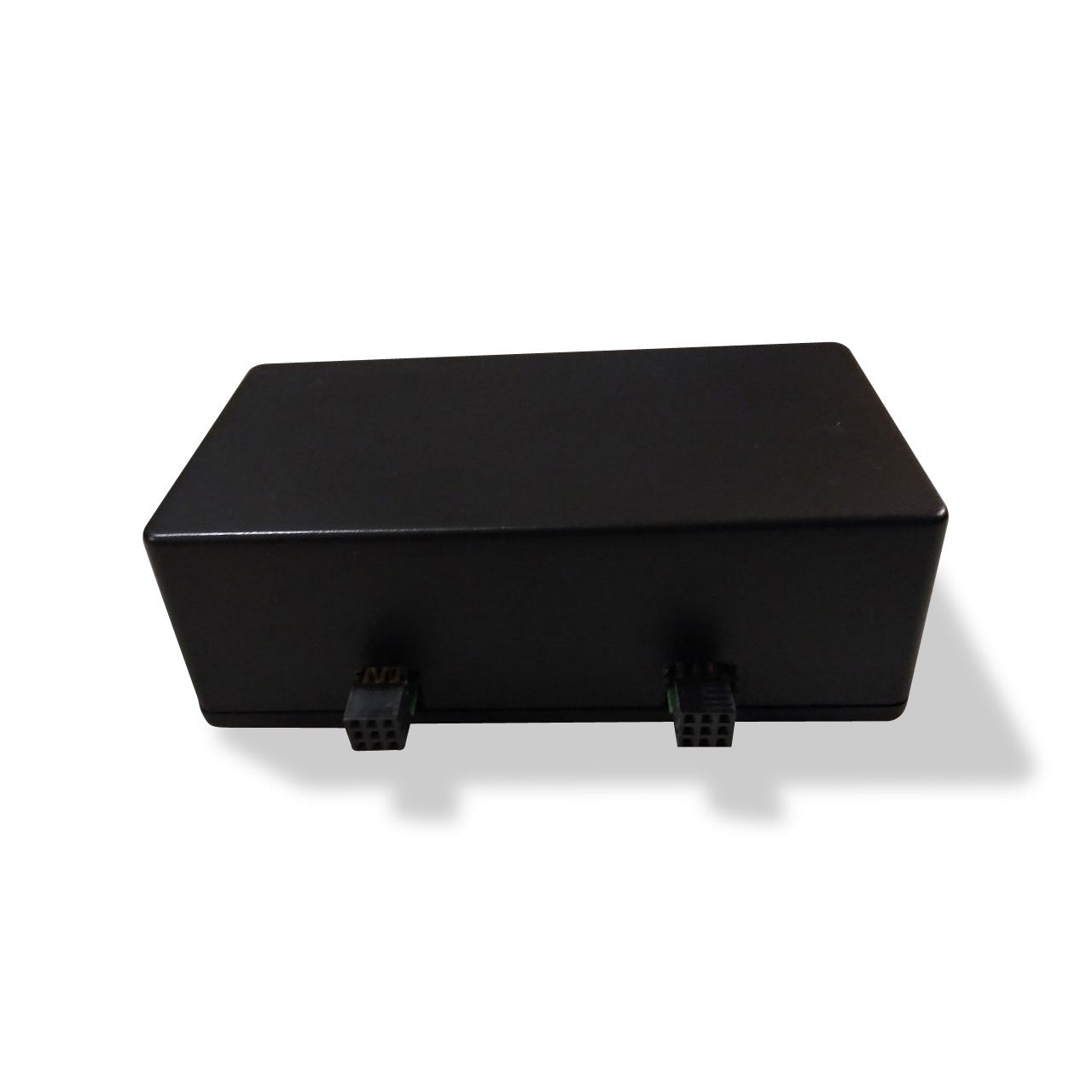

The enclosure is included.

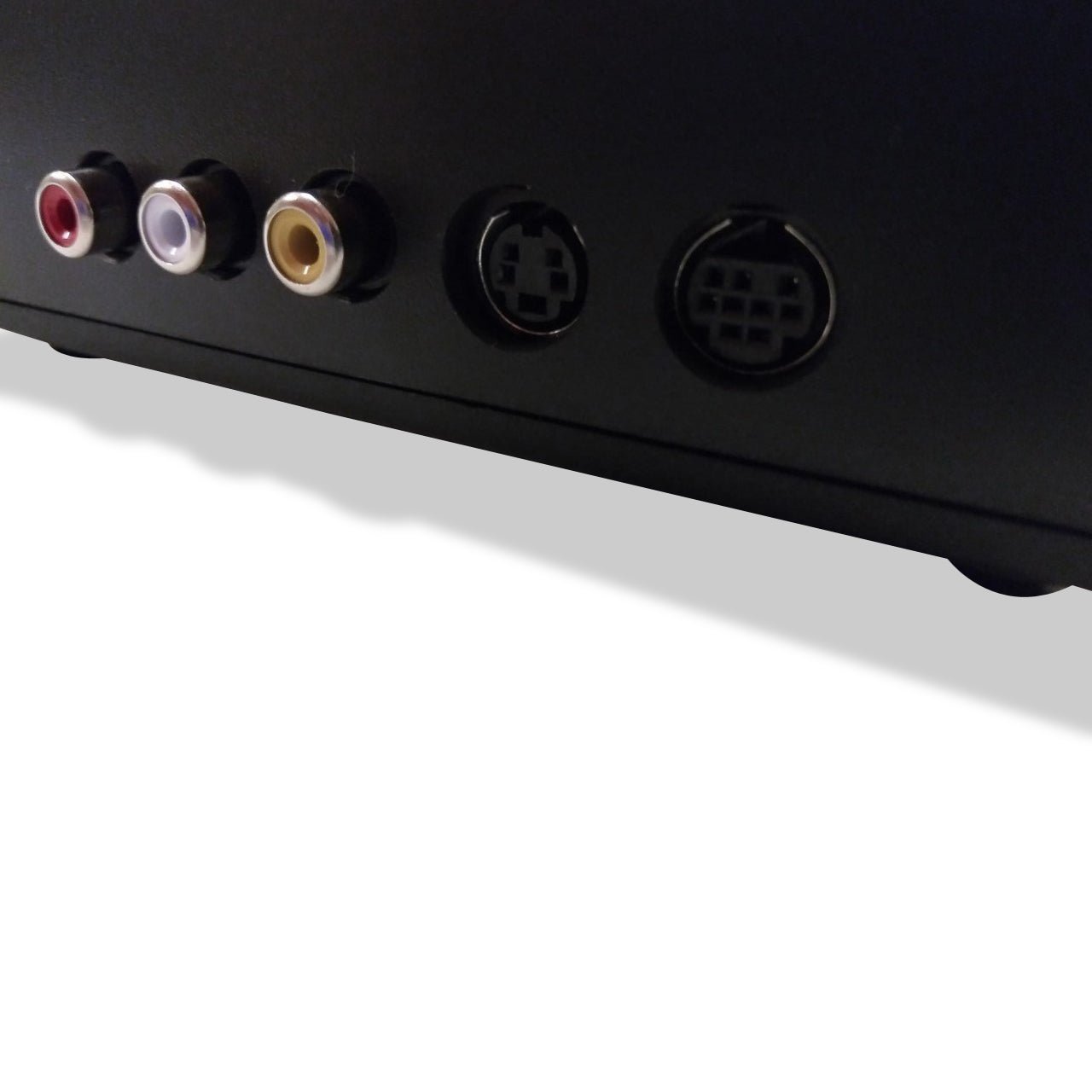

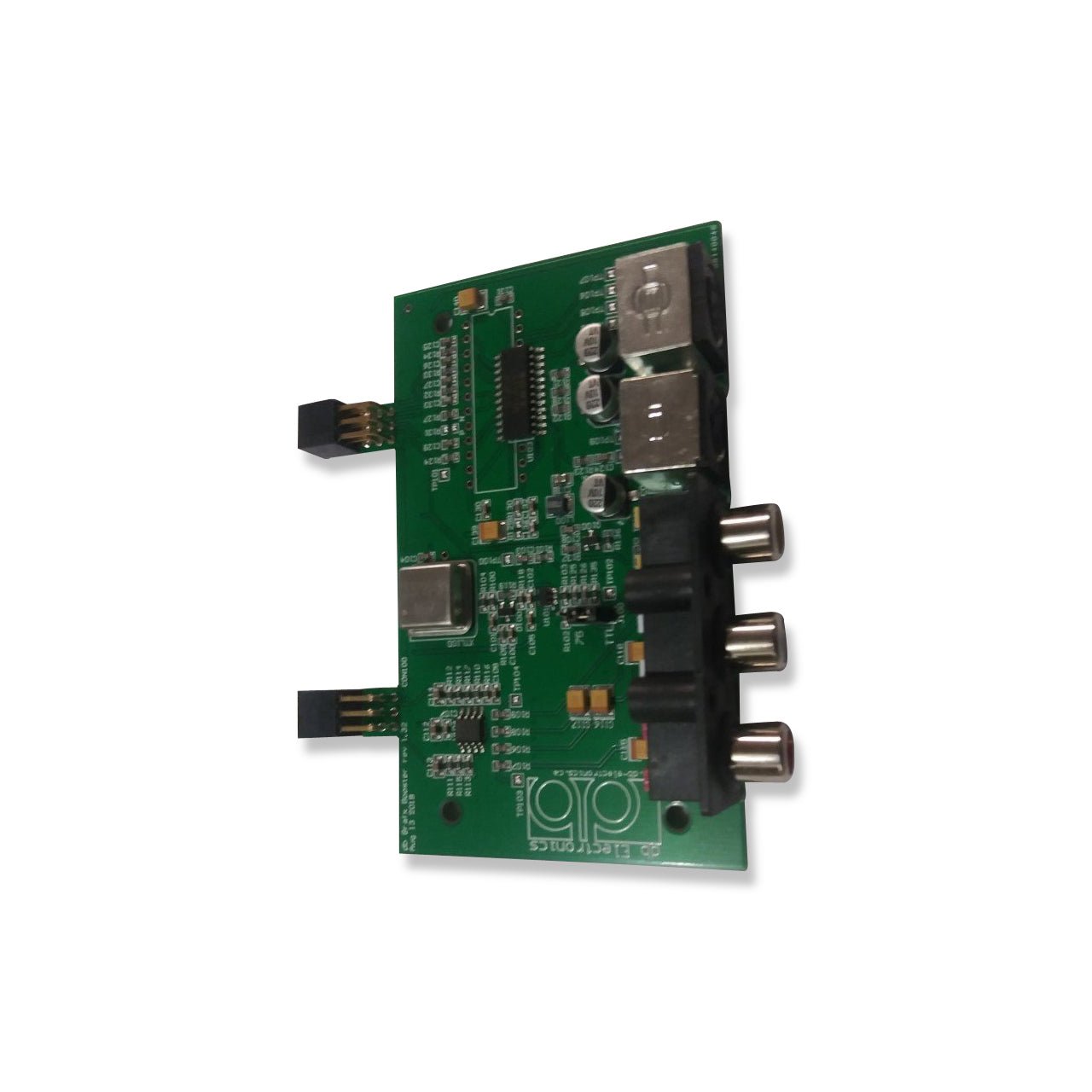

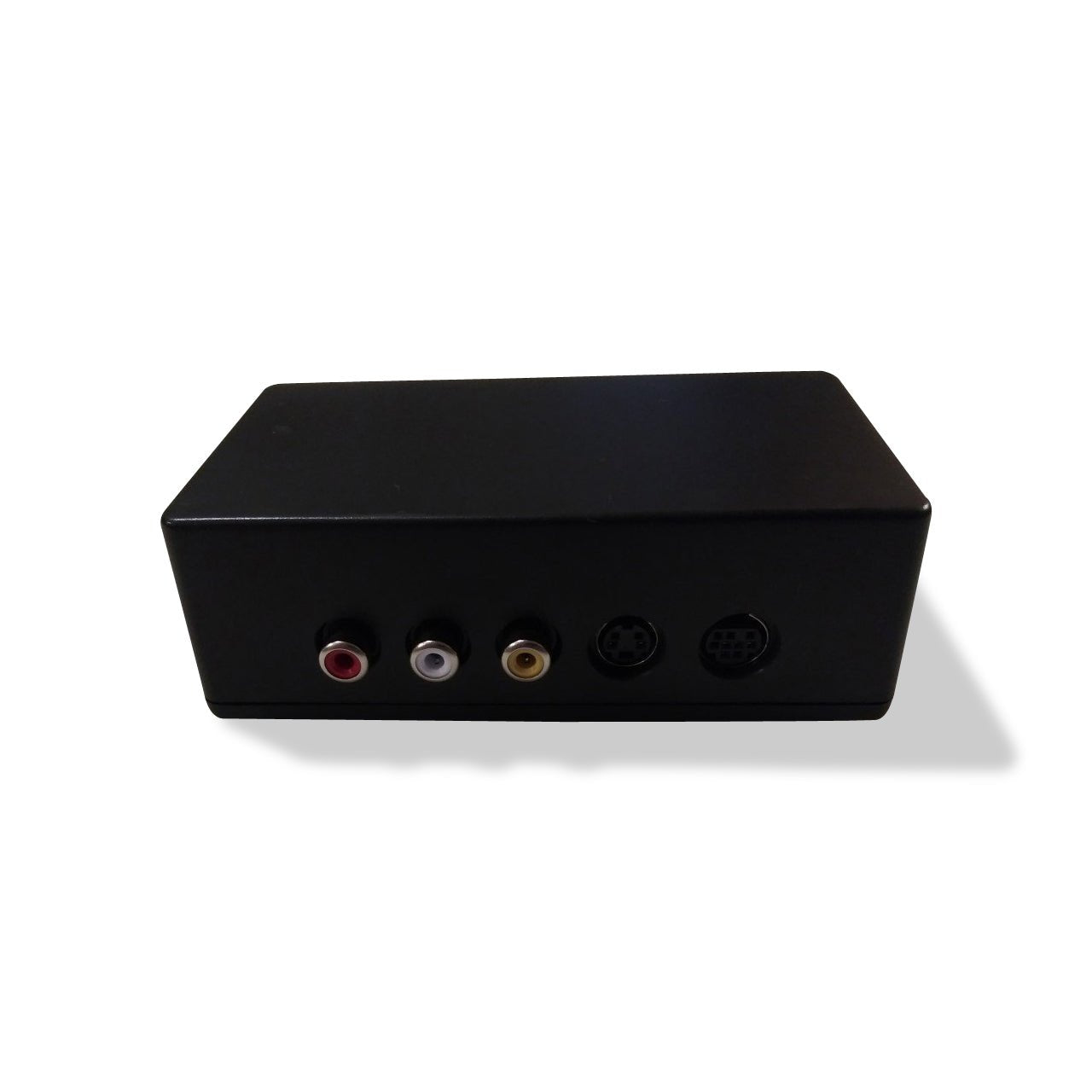

The dbGrafx Booster, designed by DB Electronics, adds many video outputs to the TurboGrafx-16 / PC Engine using a Sony CXA1645 video encoder IC. Three output connectors are found on the dbGrafx Booster each carrying the following signals:
  • Mini DIN9 (a.k.a. Sega Genesis 2 A/V connector)
  • RGB + CSYNC (i.e SCART)
  • Compatible with standard Sega Genesis 2 cables including 75 ohms resistors and 220uF coupling capacitors
  • Recommended YPbPr cable from HD Retrovision
  • Recommended SCART cable from Insurrection Industries
  • Amplified by CXA1645
  • CSYNC
  • from version 1.2 onwards, selectable video level or TTL csync via jumper
  • CVBS (a.k.a. composite video)
  • Compatible with out of the box yellow/white/red Sega Genesis 2 A/V cable
  • Transcoded from RGB by CXA1645
  • Stereo Audio Only
  • While the Sega Genesis 2 A/V pinout permits mono audio, it is not supported by the dbGrafx Booster (why the hell would you want mono audio?)
  • Amplified on dbGrafx Booster
  • Mini DIN4 (a.k.a. S-Video connector)
  • Y/C Video
  • Compatible with standard S-Video cable (recommended option coming soon from Retro Access)
  • Transcoded by CXA1645
  • RCA Jacks (yellow/white/red)
  • CVBS (a.k.a. composite video)
  • Direct signal from console (i.e. same as original Turbo Booster)
  • Stereo Audio
  • Amplified on dbGrafx Booster
