BlackDog Tech Gamecube DOL 101 Digital Port Kit
BlackDog Tech Gamecube DOL 101 Digital Port Kit
1 review
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

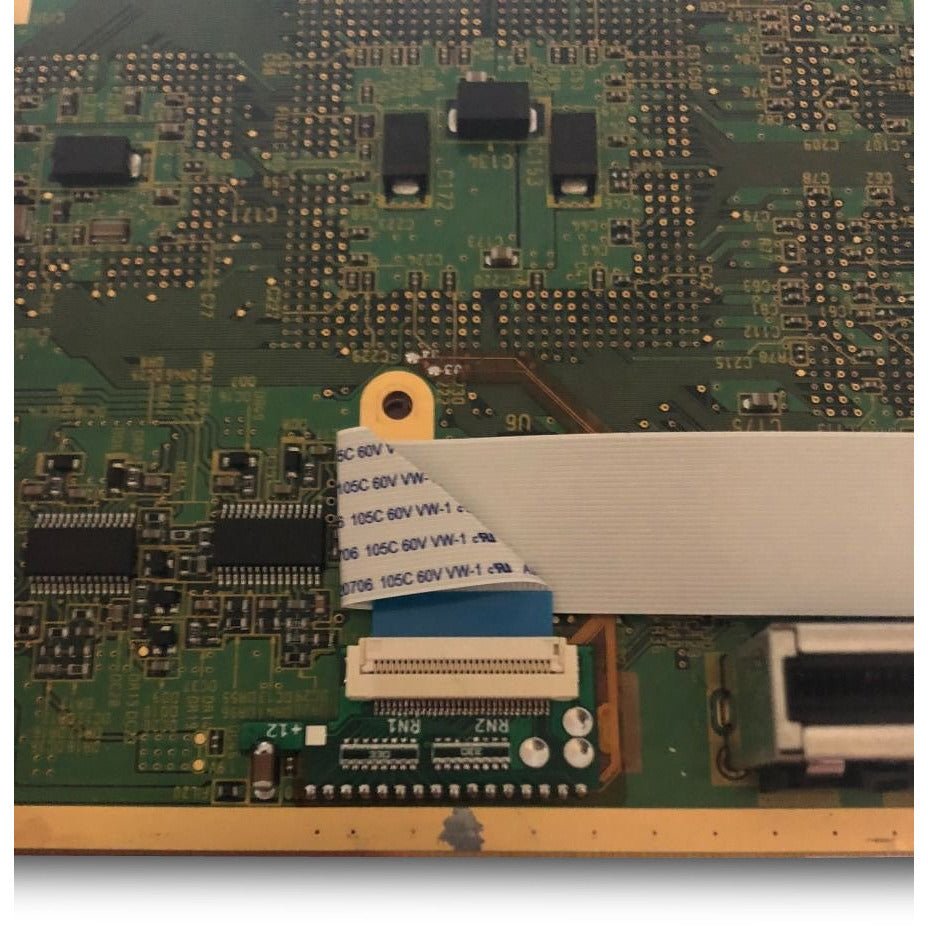

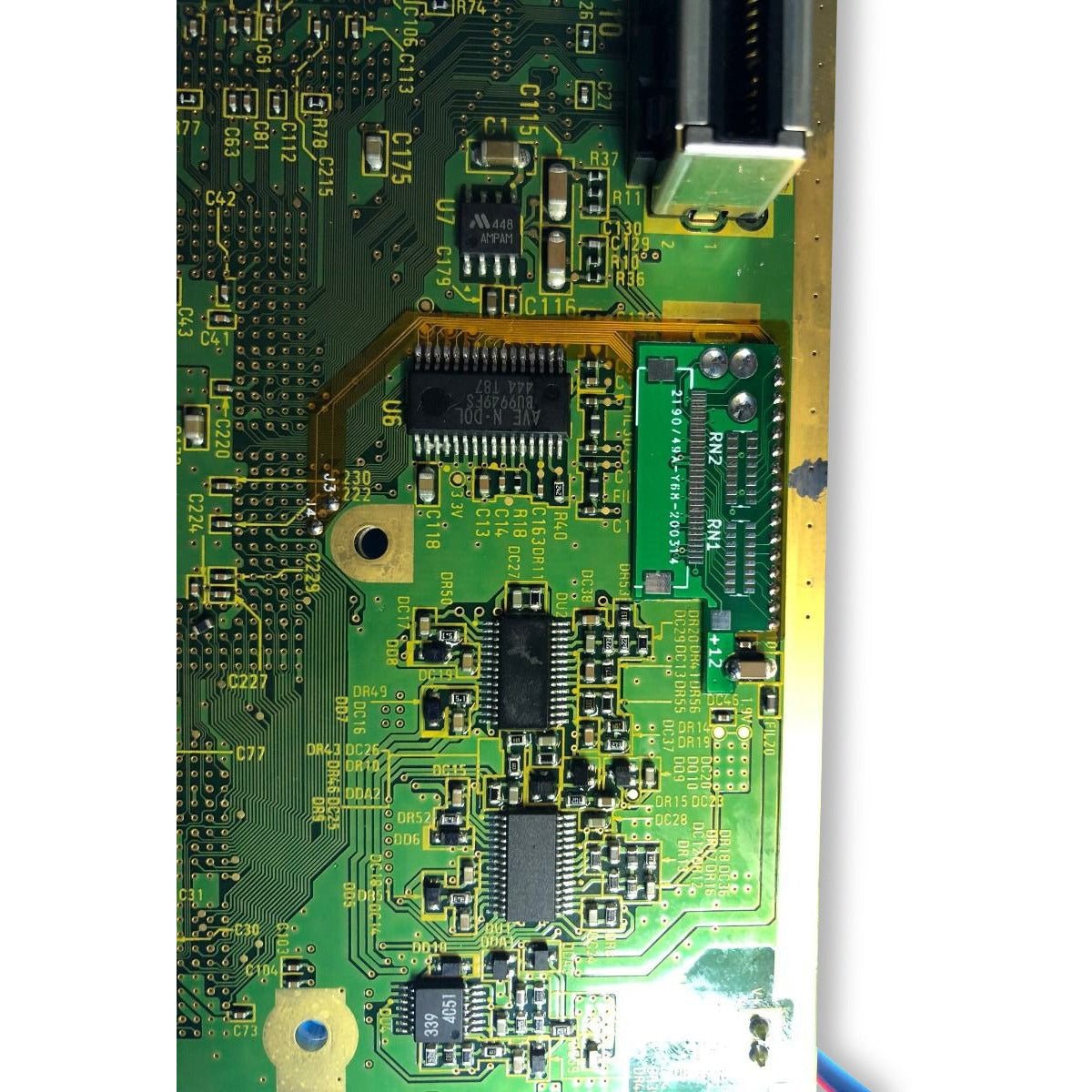

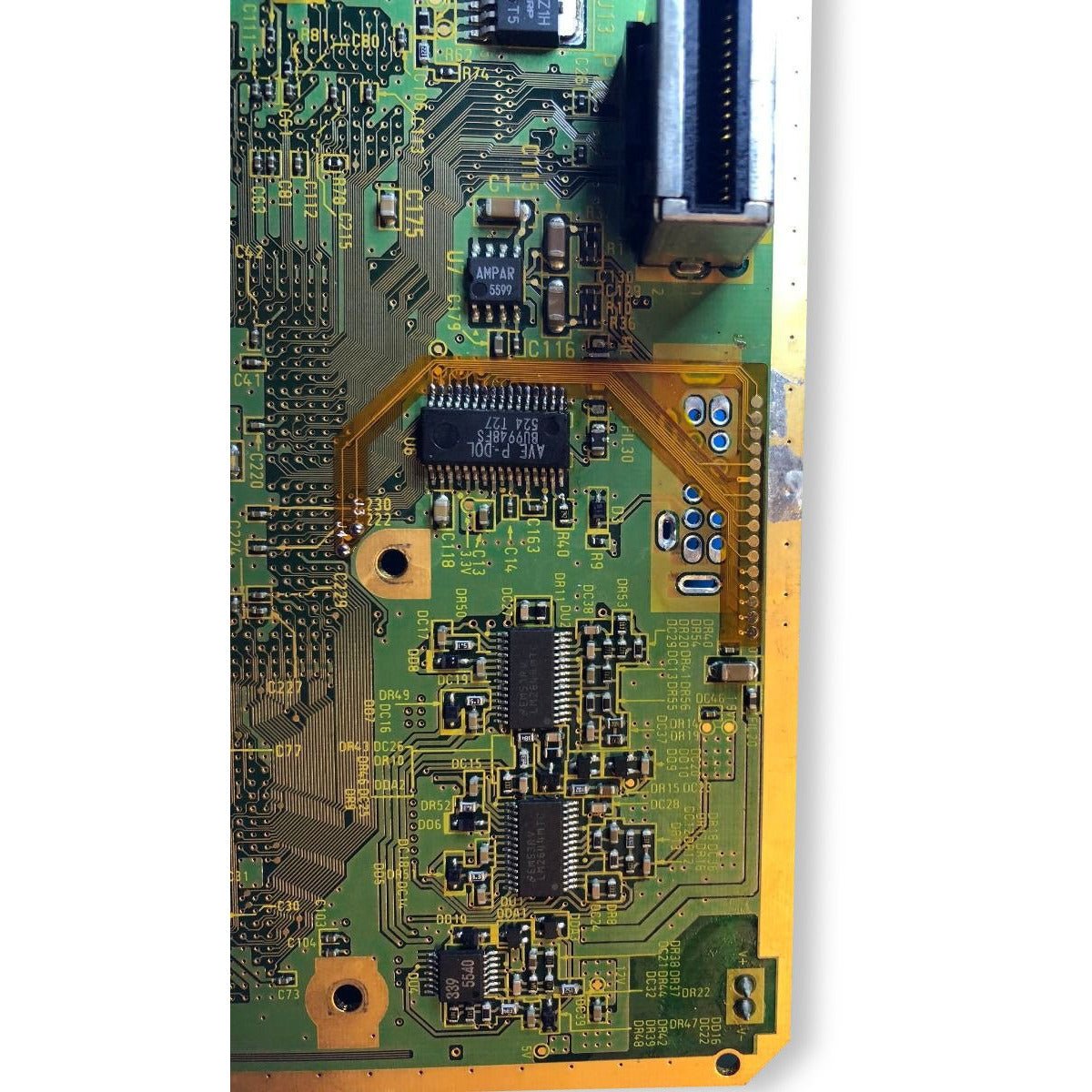

This kit replaces the analog port on DOL-101 GameCube's with a 3D printed digital port. This allows the use of official component cables and plug in HD adapters on the analog only GameCube's.
You must have good soldering skills to install this kit. Please watch this video and make sure you have the ability to install the kit. Recommended installers are linked below for your convenience.
A 3.5mm jack is also included so analog audio and composite video can pulled when using official component cables. If you would like to use composite video you will need an adapter with left/ right RCA cables.

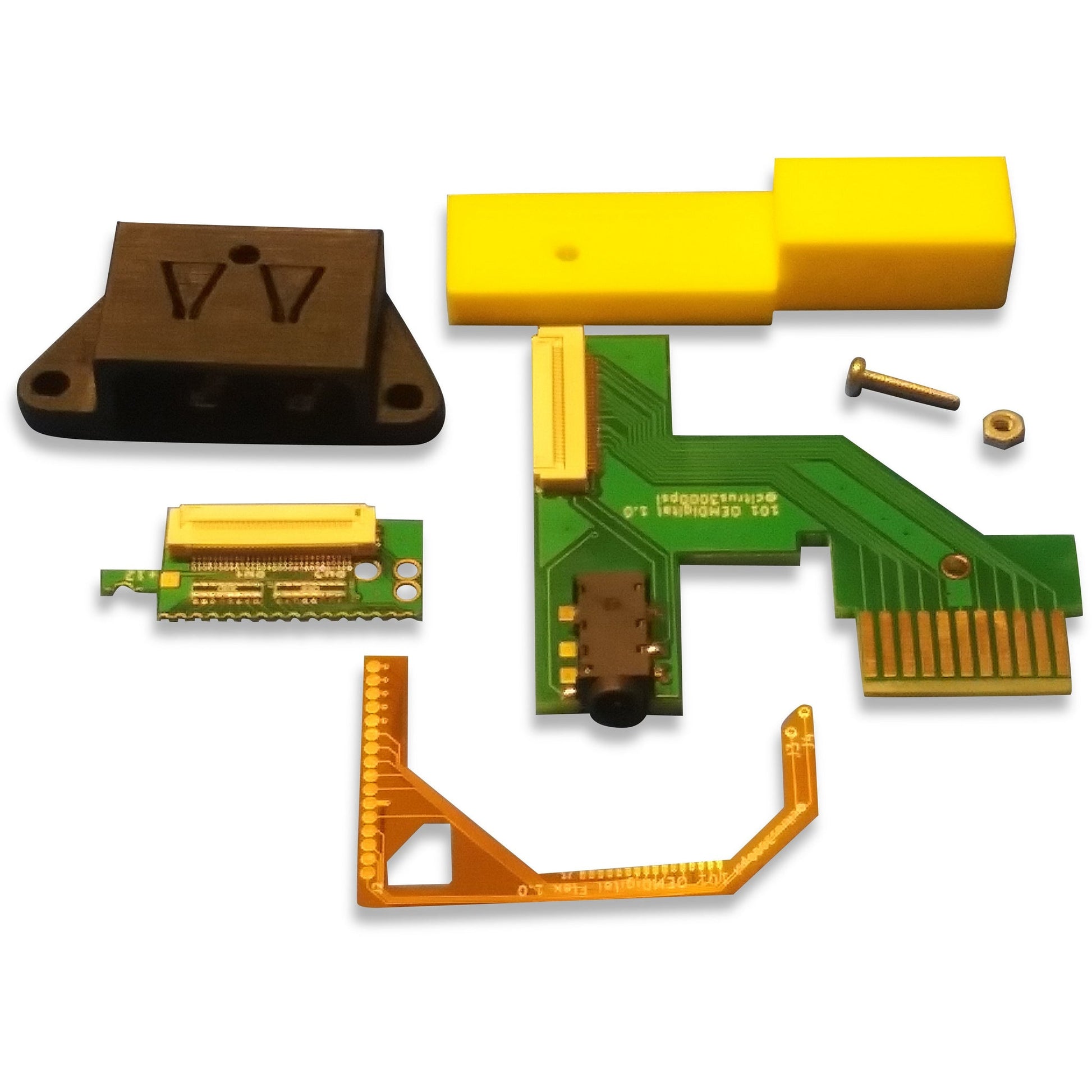

Kit contents:
- Custom Flex Cable
- Top PCB Board
- Bottom PCB Board
- FFC Cable
- 2mm Screw and Nut
- 3D Printed drill guide (To aid in drilling 3.5mm jack hole)
- 3D Printed Digital Port (PETG Black Color)
Recommended Installers can be found here.
