NES Expansion Audio Board

NES Expansion Audio Board

$11.99 USD
$11.99 USD
Sale Sold out
Shipping calculated at checkout.
Version
NES Front Loader - Stock (not RGB modded)

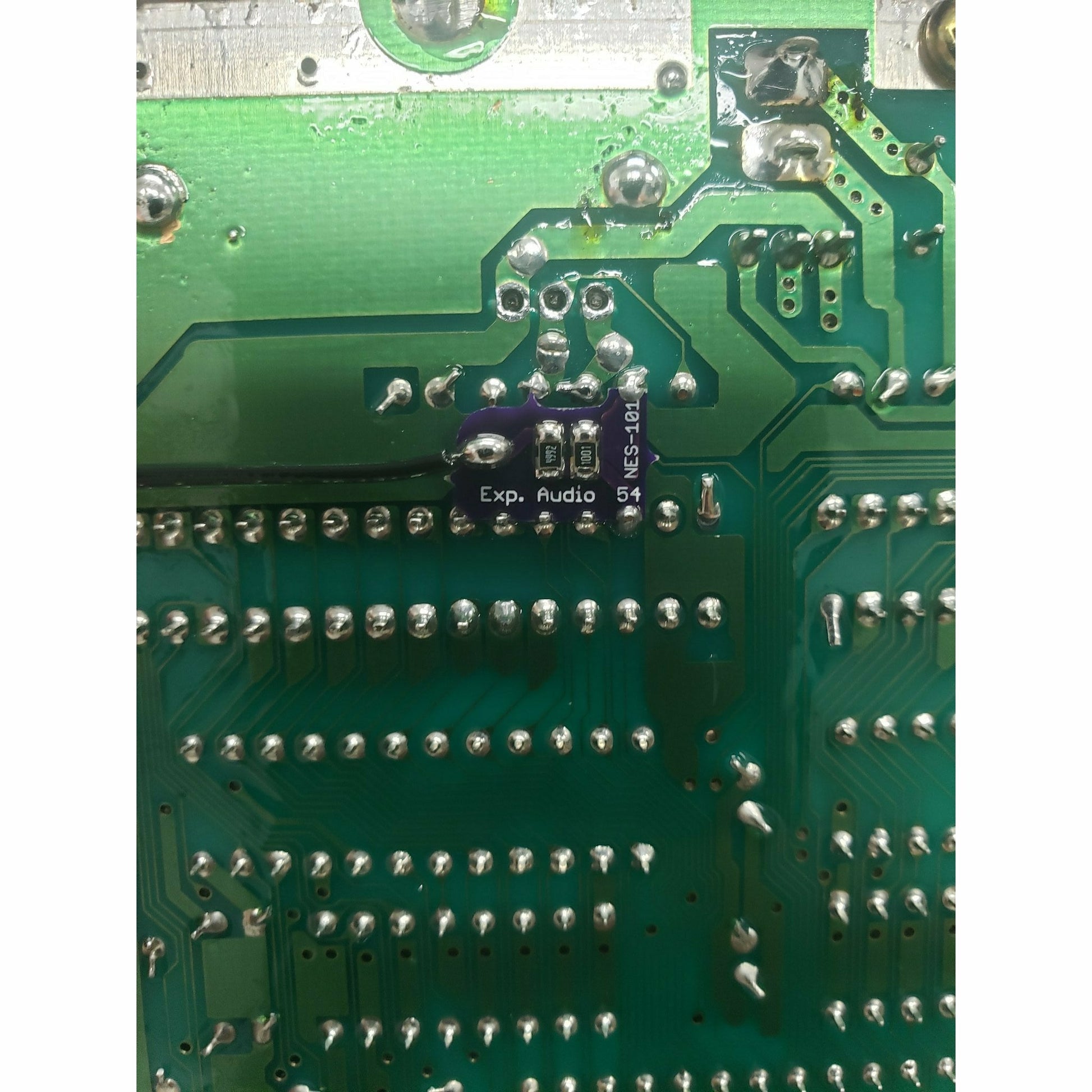

Use a short wire or component leg to jump the pad to pin 3

NES Top Loader - Stock (not RGB modded)

The Top-Loader doesn't have a real amplifier for audio, so you can try muxxing it into pin 1 or pin 2 of the CPU.

It was never designed for this, but it certainly won't harm anything.

NES Front & Top Loader - RGB Modded

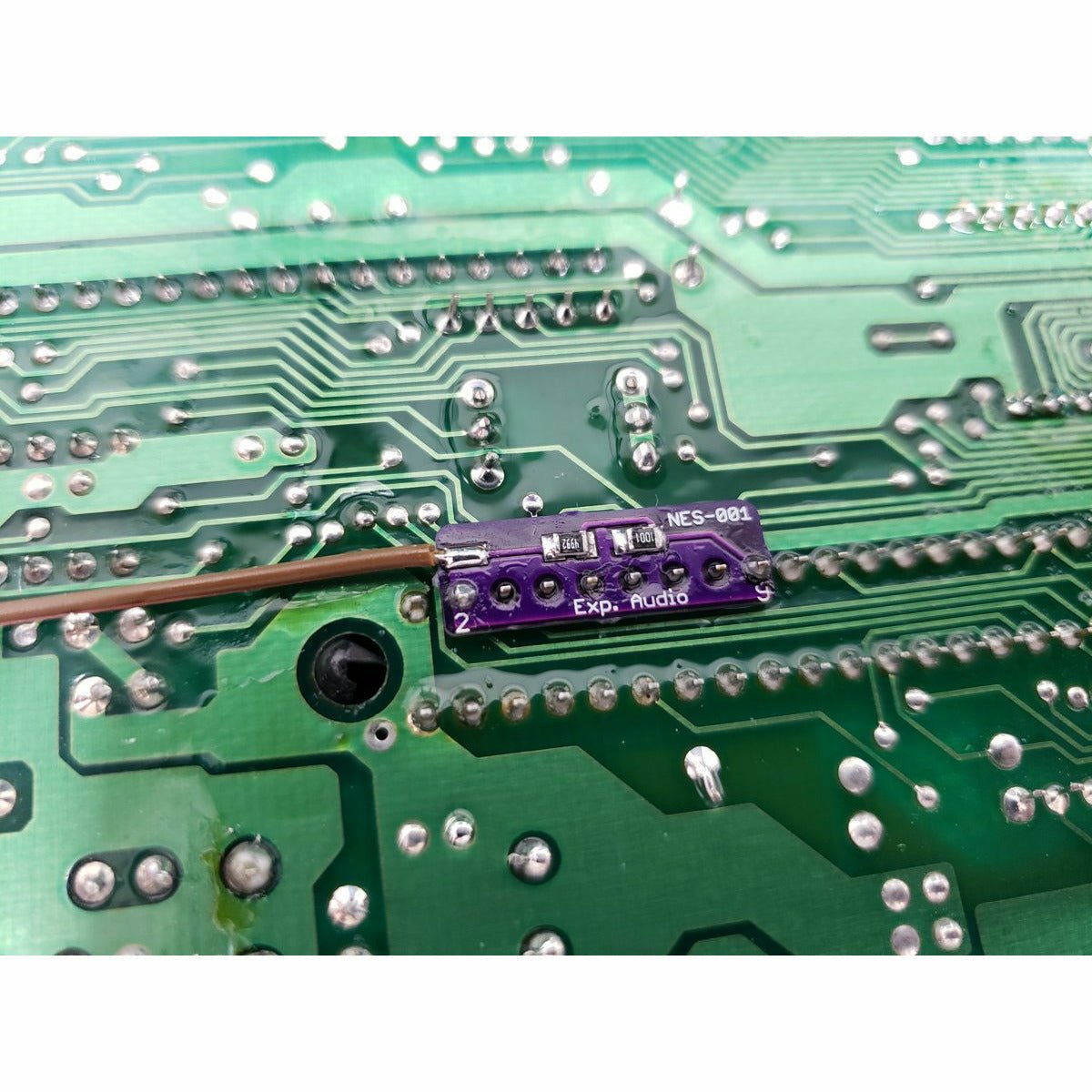

Use a jumper wire to connect the expansion audio pad to the open via next to component J5 on the RGB board.

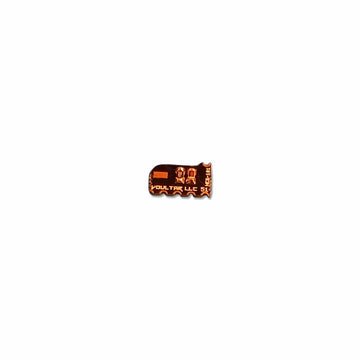

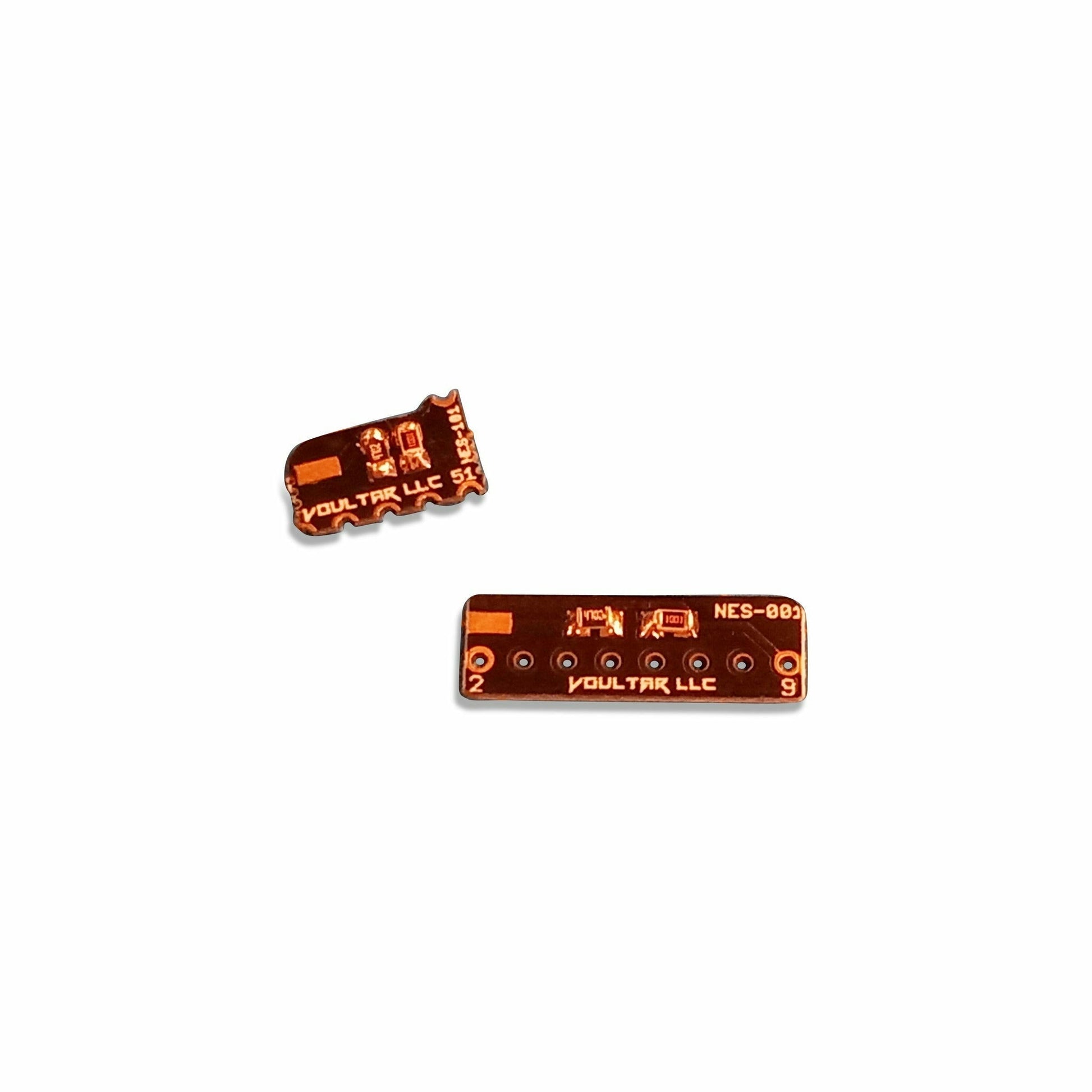

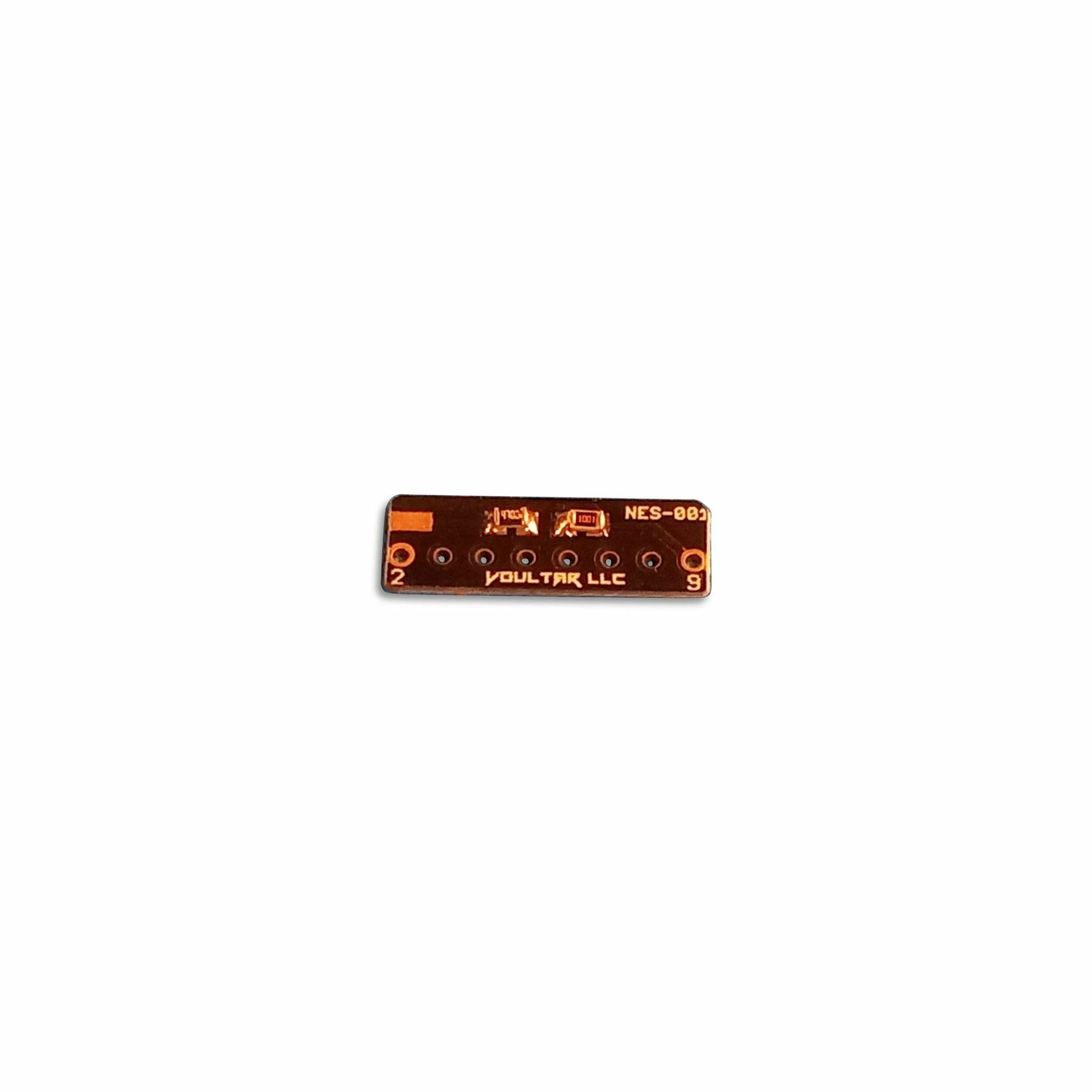

    This small interface is designed to allow easy acquisition of expansion audio from a real Famicom cartridge.
    View full details

    Customer Reviews

    Based on 2 reviews
    100%
    (2)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    G
    Gabriel Rozsa
    Exactly what it says it is

    Worked perfectly the very first time I soldered it in.

    R
    Ryan Pinney
    Fast, simple, effective.

    Easy to install, with clear directions on the board to connect a wire to the nes rgb board. Gonna buy another one as soon as they come available. Makes playing expansion audio games on my everdrive sound great.
