GCDual

GCDual

$144.99 USD
$144.99 USD
Sale Sold out
Shipping calculated at checkout.

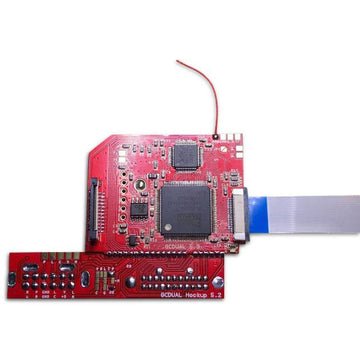

GCDual is an internal hardware designed to run GC-Video by Ingo Korb for the DOL-001 Nintendo Gamecube. It outputs analog video and digital simultaneously.  It can output 240p/480i/480p in all video modes.  240p/480i and can be line doubled to display 480p.  The analog portion supports the following outputs: RGBS/RGBHV/RGsB/YPbPr.  Composite sync can output TTL or annenunted levels depending on the jumper state of JP2. RGBS Scart cables can easily be setup to use a CSYNC cable or Compsite Video Sync cable.

AUDIO IS DISABLED BY DEFAULT AND MUST BE ENABLED ON THE OSD BY ENABLING ''DVI ENHANCED MODE'

There currently is no good "off the shelf" solution for VGA.  For YPbPr Dan designed an adapter to allow you to use a Wii component cable.  This adapter is open source and can be built with these files:

http://dansprojects.com/downloads/GCDual_Component_Adapter.zip

If you would like to know more about the features available with GC-Video (Like the On screen display, etc)  Please checkout Ingo Korb github,https://github.com/ikorb/gcvideo

GC-Video also carries this license: https://github.com/ikorb/gcvideo/blob/master/README.md

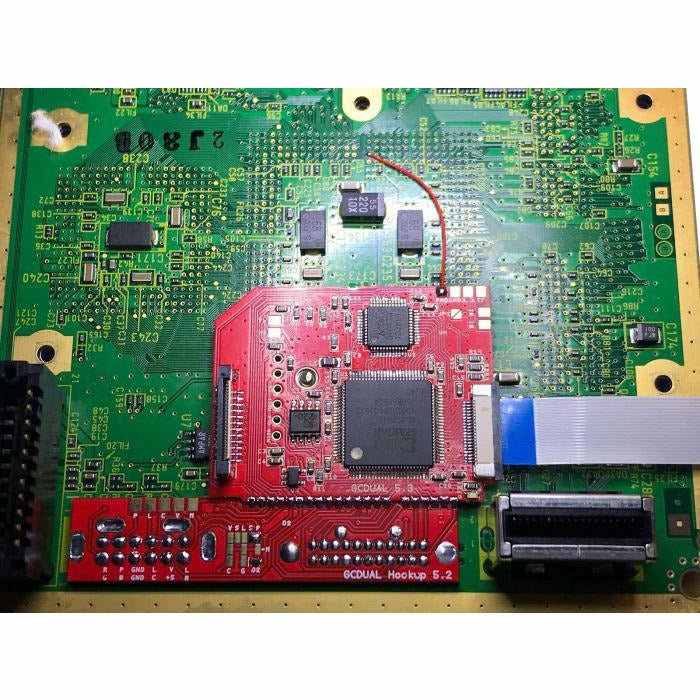

This is a pre-assembled kit that includes everything you need to install, besides basic tools.  A list of tools needed is listed in the install instructions. Installation is for advanced users only.  Each kit is thoroughly tested before being packaged and sent out.  We cannot be held responsible for damage to any console or kit.

Installation Instructions: GCDual Install Guide

Replacement Components: here

Installation Video: Voultar's Guide

QSB Jumper Guide: GCDual Jumpers

Recommended Installers can be found here.
