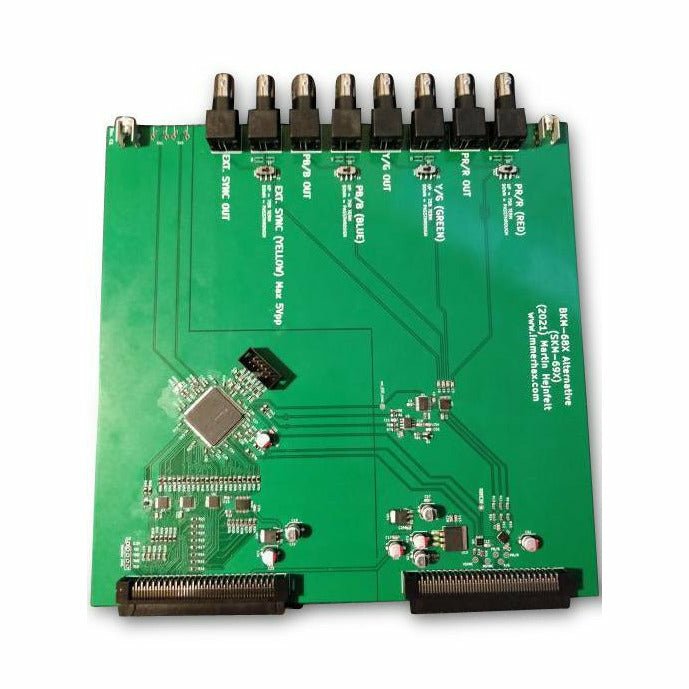

BKM 68X alternative input board

Regular price
$325.00
Sale price
$325.00
Shipping calculated at checkout.
Quantity must be 1 or more
Pay in full or in 4 interest-free installments for orders between $50 and $1000 with

Pre-Order Note:
Coupon codes may be disabled for some pre-order and exclusive items.
Pre-order ship dates are estimates and subject to change.
Estimated to ship late October
*we will update the support page with specific dates as we get closer

Price Change Notice:
If you've already purchased, your order is secure at the original price.
Unfortunately product costs have changed and we've had to increase the price per unit. We plan to reduce prices Summer 2022 however there will likely be a rush on these now out of stock chips and it's possible the inflated prices will persist. We'll do our best.



This project aims to serve as an alternative to the crazy expensive Sony BKM-68X RGB/YPbPr input card for Sony BVM-A monitors like the BVM-A14F5, A20F1, A24E1W and A32E1W (M/U/A).

The card has no aperture circuit so it can only pass the signal straight through to the monitor as it originally is (buffered and level conditioned).

Compared to the original BKM-68X, this has severely better sync handling seemingly.

The list of tested consoles that syncs fine as of revision C1. is:

  • SNES (2CHIP US) 60Hz (CSYNC)
  • SNES (1CHIP FAT US) 60Hz (CSYNC)
  • SNES (2CHIP EU) 50Hz (Sync on luma)
  • SNES (1CHIP EU, SNSP-1CHIP-01) 50Hz (Sync on luma)
  • Genesis (US) 60Hz (CVBS sync)
  • Genesis 2 (US) 60Hz (CSYNC)
  • Mega Drive (EU) 50Hz (CVBS sync)
  • Mega Drive 2 (EU, DFO) 60Hz (CSYNC)
  • Mega Drive 2 (EU, DFO) 50Hz (CSYNC)
  • Master System (on Genesis through Power Base) 60Hz (CVBS sync)
  • Master System (EU, DFO) 60Hz (CSYNC)
  • Master System (EU, DFO) 50Hz (CSYNC)
  • Master System (EU, VA3, no DFO) 60Hz (59,38Hz) (CSYNC)
  • Master System (EU, VA3, no DFO) 50Hz (CSYNC)
  • Nintendo 64 (NUSJ) 60Hz (THS7314 RGB) (CSYNC)
  • PSone SCPH-101 (EU) (MM3+MFO) 60Hz (RGC CSYNC)
  • PSone SCPH-101 (EU) (MM3+MFO) 50Hz (RGC CSYNC)
  • Wii (EU) 576i 50Hz (YPbPr)
  • Wii (EU) 480i 60Hz (YPbPr)
  • Wii (EU) 480p 60Hz (YPbPr)
  • PS3 (EU) 576i 50Hz (YPbPr)
  • PS3 (EU) 576p 50Hz (YPbPr)
  • PS3 (EU) 720p 60Hz (YPbPr)
  • PS3 (EU) 1080i 60Hz (YPbPr)
  • PC Engine (White), External RGB mod (THS7374, Genesis 2 plug), 60Hz (CSYNC)
  • Analogue Nt Mini 2.0 60Hz RGBS (so CSYNC)
  • Amiga 500 RGBS (PAL) 50Hz (CSYNC)



It is generally recommended to use CSYNC signals at 75 Ohm levels.

Revision history:

C1: Minor layout changes

C: Added mounting screw brackets and shortened board for a PCB front, change switch to LFCSP version

B: Added onboard FPGA, color filter, rerouted signals.

A: Initial version

More information: https://www.immerhax.com

github: https://github.com/skumlos/bkm-68x-simple

*Designed by Martin Hejnfeltskumlos (Skumolos)
